Head bone 1 foot above body


Recommended Posts

New at modeling and learning. I have an issue where in blender my model looks perfectly fine, but in modview the bone and head shift up a foot and float above the body. When I try to reimport the .glm it looks perfectly fine, but then reexporting it does not seem to solve the issue. Any help would be great.

https://www.dropbox.com/s/1h9f13xptzlid5e/Untitled2.png?dl=0



http://www.dropbox.com/s/1h9f13xptzlid5e/Untitled2.png?dl=0

Link to comment

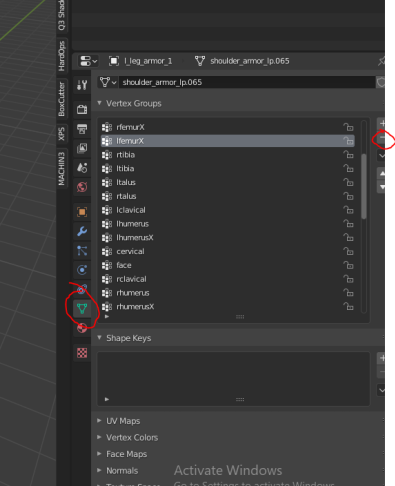

You probably have a vertex group created for the model_root bone. Select your head object and go to the object data properties menu. You'll see a "vertex groups" menu, there select the model_root vertex group and delete it. If you see a vertex group under the name of 'motion' delete that too.spacer.png
