Dark Palace Texture Re-creation

[DT.]

Ignore the door for now, I'm still screwing with it. I'll fix it shortly.

What do you suggest to do about the floor tiles?

[AshuraDX]

Ignore the door for now, I'm still screwing with it. I'll fix it shortly.



What do you suggest to do about the floor tiles?

decrease the tiling.

Just make the individual tiles larger, But that's something I can and will do in the shader.

[AshuraDX]

Update bump:

Before:

After:


not happy with the color of my MArble texture yet, gotta up the saturation and push it slightly more towards orange

The floor could use a bit more light, the light from the ceiling doesn't reach all the way to the bottom.

UPDATE:
Pillar material in place, also finished the marble trims.

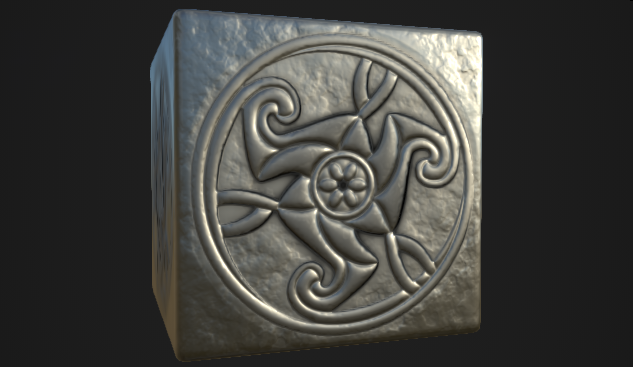

Also started work at the 07panel1 Texture:

this is the first detail piece I had to import a premade PSD for, tracing the shape with shapes in Photoshop was fun

UPDATE2: Progress!



still have to add a few of the carved shapes to the bricks in there and replace the concrete material with a custom one

UPDATE 3:


wellp I officially spent the whole day texturing....
anyway - I have to ask you to adjust 2 textures for me @@DT85
number 1 being the large bronze window right over the crosshair here:

the Bronze detail plate was slightly off center in the original texture, mine is perfectly centered horizontally and positioned slightly higher, should be fixed in 2 clicks.

The Other texture i'd like you to change is the texture used on the side of the Pillars instead of using 07wst4c use 07wst4b, just to avoid that harsh texture seam there- the shiny marble makes it really obvious while moving



UPDATE4:

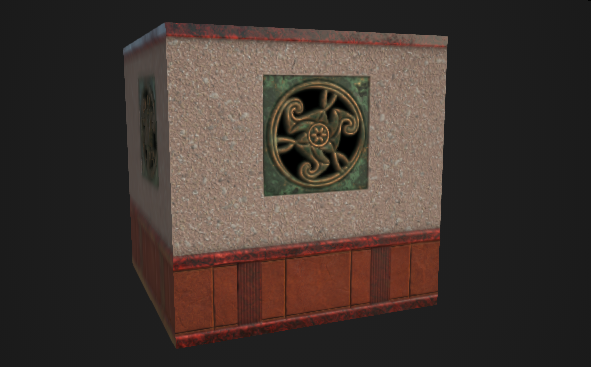

Just figured you'll need this to adjust the texture properly



[AshuraDX]

@@DT85 - leave my files as .tga .PNG loads slower and when they're packed in a .pk3 they size doesnt differ much.

[DT.]

I did that because I only have so much space on dropbox.

[AshuraDX]

Update Time!


finished the ceiling textures.
I replaced the wood beams in one texture variant with the marble masonry from the ceiling texture with the light in the center, to avoid a harsh texture seam. If you want the wooden framework there add brushwork for it.



I also swapped out your stone door material with gold one I made, your material as it is currently sticks out like a sore thumb.

If you want to retouch your material, go for it - I jsut want to maintain a consistent look and quality.

UPDATE:

[DT.]

Fair enough, prolly best to have 1 texture artist per level.



Anyhow, looks great! I noticed that enabling parallax though bogs down FPS horribly. I'll have to add a setting for it.

[AshuraDX]

Fair enough, prolly best to have 1 texture artist per level.



Anyhow, looks great! I noticed that enabling parallax though bogs down FPS horribly. I'll have to add a setting for it.

It does? My 970 didn't complain so far



But I'll keep that in mind for the next materials

[Archangel35757]

@@AshuraDX - nice work, but the stones above the doorway cutout still seem to be off... architecturally/structurally speaking.



Typically, for this kind of opening you'd have one stone (called a Lintel) that bridges the full top and supported by both sides like this:



https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS1hjh8R2-XDGI0Em80VXN_OlQlE8UQDYG2Trtdif4lzqcBuZKw8A

[AshuraDX]

@@AshuraDX - nice work, but the stones above the doorway cutout still seem to be off... architecturally/structurally speaking.



Typically, for this kind of opening you'd have one stone that bridges the full top like this



https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcS1hjh8R2-XDGI0Em80VXN_OlQlE8UQDYG2Trtdif4lzqcBuZKw8A

@@Archangel35757

I'm not developing the Brushwork in the map. Nor am I assigning textures. I am just replacing the textures @@DT85 placed around the level with PBR Versions.



I'd prefer making that arch an ASE model with its own texture, which would then allow me to do what you are asking for.

[DT.]

If you have the time to do models, go for it. Just export out the brushwork arch as an OBJ so you have exact size reference. You will have to make sure it replaces the lift room's wall though, and make sure the brick texture for it is scaled to match the brushwork version.

[AshuraDX]

If you have the time to do models, go for it. Just export out the brushwork arch as an OBJ so you have exact size reference. You will have to make sure it replaces the lift room's wall though, and make sure the brick texture for it is scaled to match the brushwork version.

Where do I find the map source files? All I'd need is the actual archway brushwork in ASE.

[DT.]

I've put the map source in the yun GL2 pk3.

[AshuraDX]

I've put the map source in the yun GL2 pk3.

that's good to know.



I'll probably dig up Radiant then and give mapping another shot.

I may aswell replace some of the wall sections with ASE meshes and reduce the need for parallax mappin that way.

[SomaZ]

Anyhow, looks great! I noticed that enabling parallax though bogs down FPS horribly. I'll have to add a setting for it.

Don't forget that there are two options for parallax mapping. 1 and 2. 2 looks much better, but is also a lot slower.

[DT.]

I had mine on 1, but yeah I'll make sure there's 1, 2, off.

[DT.]

that's good to know.



I'll probably dig up Radiant then and give mapping another shot.

I may aswell replace some of the wall sections with ASE meshes and reduce the need for parallax mappin that way.

Just need to make sure you don't replace anything that's structural, or the map will leak and not compile.

[AshuraDX]

Just need to make sure you don't replace anything that's structural, or the map will leak and not compile.

or put a caulk brush behind whatever I replace

Anyway I could use some help with compiling the map - just give em the params you used and i'll give it a go.



The ASE is textured and in place



[DT.]

Not sure what difference the model will have over the brushwork. The edges are still ultra sharp, same as the brushwork.



Anyhow, add this to your radiant build menu, the first line is the name, the rest is the actual compile commands:

Q3Map2: (final) BSP -meta, VIS -saveprt, LIGHT -fast -patchshadows - shade -deluxe -bounce 8 -v

[bsp] -meta "[MapFile]"
[vis] -saveprt "[MapFile]"
[light] -fast -patchshadows -shade -deluxe -bounce 8 -v "[MapFile]"

[AshuraDX]



Not sure what difference the model will have over the brushwork. The edges are still ultra sharp, same as the brushwork.



Anyhow, add this to your radiant build menu, the first line is the name, the rest is the actual compile commands:

Q3Map2: (final) BSP -meta, VIS -saveprt, LIGHT -fast -patchshadows - shade -deluxe -bounce 8 -v

[bsp] -meta "[MapFile]"
[vis] -saveprt "[MapFile]"
[light] -fast -patchshadows -shade -deluxe -bounce 8 -v "[MapFile]"

The main cause for adding a mesh here was to adjust the texture coordinates and a make it use a slight variation of the brick texture. Smoothing the corners could be done in a next step.

[AshuraDX]

@@DT85  since I could not add those settings to my Radiant, or am too retarded to find the function for this in radiant 1.6.5, I tried entering those params into Q3map2gui and got several warnings for unknown commands.



EDIT: well - that didn't work as planned, the game crashes as soo nas I devmap 07yun_gl2

[DT.]

I find radiant 1.5 has a much better UI.



1. Go to Build>>>Customize....
2. Scroll to the bottom of Build menu where there's a blank line, and input the name.
3. Then, input each line after that in Commandline
4. Click OK





Upload your edited .map file, and I'll see what's going on.

[AshuraDX]

I find radiant 1.5 has a much better UI.



• Go to Build>>>Customize....
• Scroll to the bottom of Build menu where there's a blank line, and input the name.
• Then, input each line after that in Commandline
• Click OK



Upload your edited .map file, and I'll see what's going on.

1.5s UI is a complete mess on my system. Windows 10 + my unusual Screen setup is not the best combination.

[DT.]

No idea if this is on Win 10 or not, but I have to disable desktop composition on Win 7.

[AshuraDX]

No idea if this is on Win 10 or not, but I have to disable desktop composition on Win 7.

not available sadly, but I do have 1.5 installed still, will give compiling the map a shot with 1.5
